7.1 Realtime Rhino to Processing: 2 Values

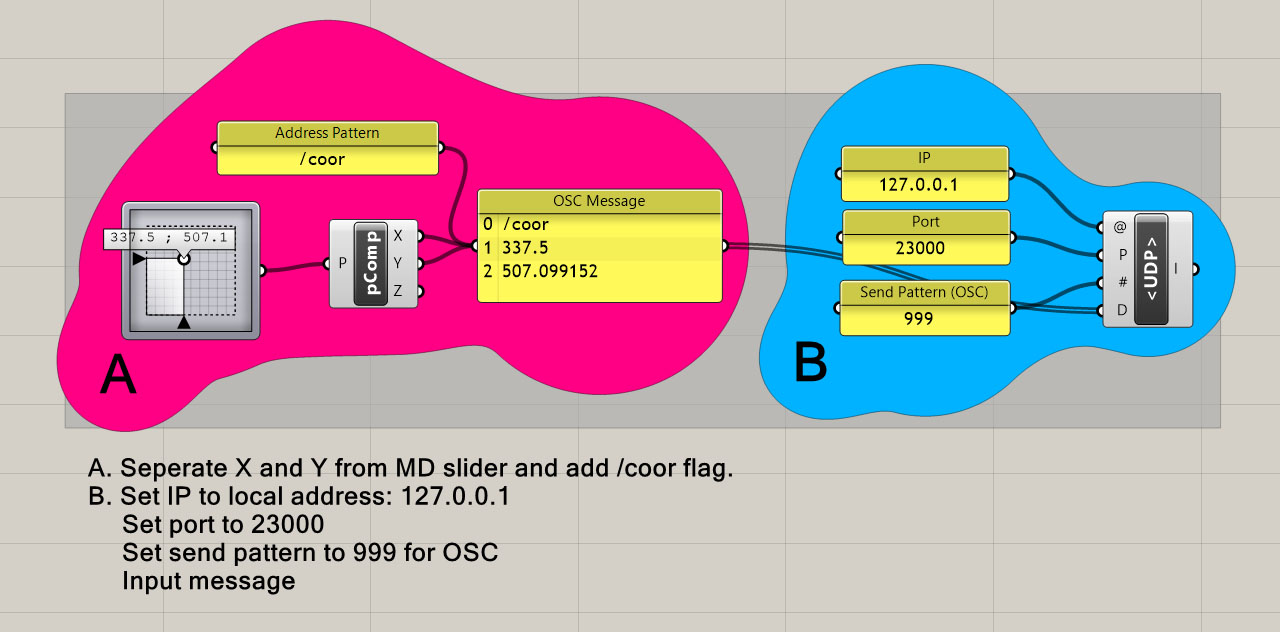

The above definition sends x and y coordinates to the processing sketch below using OSC. You can download the definition here: Rhino_to_Processing_OSC_1.zip.

import oscP5.*;
import netP5.*;

//intitialize x and y coordinate variables
float xpos = 0;
float ypos = 0;

OscP5 oscP5;

void setup() {
  size(800, 800);

  //start oscP5, listening for incoming messages at port 23000 */
  oscP5 = new OscP5(this,23000);
}

void draw(){
  background(0);
  //draw ellipse at x and y coor
  ellipse(xpos,ypos,100,100);
}

//incoming osc message are forwarded to the oscEvent method.
//this function i s only triggered when a message is recieved
void oscEvent(OscMessage theOscMessage) {
  /* print the address pattern and the typetag of the received OscMessage */
  print("### received an osc message.");

  //messgae is sent as a string and needs to be conferted to a float
  xpos = float(theOscMessage.get(0).stringValue());
  ypos = float(theOscMessage.get(1).stringValue());

}
